Overview of Bitumen Emulsion
Bitumen emulsion is a user-friendly and eco-friendly form of bitumen that gets big-scale usage in the construction and maintenance of roads. Compared to traditional hot-mix bitumen, emulsified bitumen is a liquid material where the bitumen gets suspended in water with the help of an emulsifying agent. This allows it to be used at low temperatures, thereby making it safe to use and needing less energy.
Bitumen emulsion use has become ubiquitous across the globe due to its environmental benefits, ease of use, and ability to be used in mixed weather conditions.
Composition and Structure
Bitumen emulsion typically consists of three main components:
Bitumen: The adhesive material, usually 40–70% of the emulsion.
Water: Serves as the continuous phase.
Emulsifying agent (surfactant): Helps distribute bitumen droplets uniformly in water and stabilize the emulsion.
The size of the droplet of bitumen in the emulsion is between 0.1 and 5 microns, which is very beneficial for effective covering and adherence to aggregates when used on roads.
Manufacturing Process of Bitumen Emulsion
Bitumen emulsion is a mechanical process with controlled production where bitumen is blended with water and an emulsifier to create a stable mixture. It begins by warming the bitumen so that its viscosity is reduced, though much less than is used in the conventional hot mix asphalt.
Concurrently, an aqueous solution with the emulsifying agent—in the majority of instances a surfactant—is prepared. The key ingredient to producing a quality emulsion is combining these two phases under conditions of high shear.
This is achieved through the use of equipment known as a colloid mill. Inside the colloid mill, the heat bitumen is circulated into the water emulsifier solution and is broken down to tiny droplets by intense mechanical stirring. The droplets are then dispersed evenly in the water phase, resulting in a fine dispersion with the droplet sizes normally ranging from 0.1 to 5 microns.
The relationship between certain ratios and process conditions such as temperature, pH, and shear force should be highly controlled and monitored so that the resulting emulsion has good setting time and storage stability.
Once formed, it is passed through cooling units and stored in special tanks that contain slow-speed agitators to prevent the separation of the components in the long term. The tanks are usually made of non-corrosive material so that they do not chemically react with the emulsion. The final product is inspected for quality and tested for consistency before it is shipped to the site or packed for distribution.
Types of Bitumen Emulsion
Bitumen emulsion can be categorized in several ways depending on how it solidifies with aggregates and how long it takes to set (i.e., when it breaks away from water and begins to bind):
Depending on Setting Time:
Rapid Setting (RS): Shatters at once when it touches aggregates. Used for surface dressing.
Medium Setting (MS): Composed to mix with coarse aggregates without shattering too quickly.
Slow Setting (SS): Remains stable for a longer period, ideal for premix applications and fine aggregates.
Based on Ionic Nature:
Cationic Emulsions (Positive Charge): Most commonly used nowadays due to better adhesive characteristics with aggregates.
Anionic Emulsions (Negative Charge): Used in some situations but not as widely used as cationic types.
Applications of Bitumen Emulsion
The versatility of bitumen emulsion allows it to be used in a diverse field of applications for road construction and maintenance:
Surface Dressing: Using a thin layer of bitumen emulsion topped with aggregate to seal and protect the road surface.
Tack Coat: Serves as an agent to bind old and new asphalt layers together.
Prime Coat: Applied to granular bases to dress them for asphalt surfacing.
Cold Mix Asphalt: Can be mixed with aggregates at ambient temperatures.
Slurry Seal and Micro-surfacing: Surface overlays thin to restore texture and extend pavement life.
These applications utilize the water resistance and performance of the emulsion in cooler climatic conditions, reducing the dependency on hot bitumen.
Limitations and Considerations
Thugh it has many benefits, there are a few limitations to be remembered:
Storage Sensitivity: Emulsions will break or separate with the passage of time unless stored properly.
Weather Dependence: Rain or excessive humidity can interfere with the breaking operation.
Aggregate Compatibility: All aggregates need not be compatible with all emulsions; chemical compatibility must be ensured.
Safe choice of the emulsion type and understanding local conditions are critical to achieve the desired result.
Storage and Handling

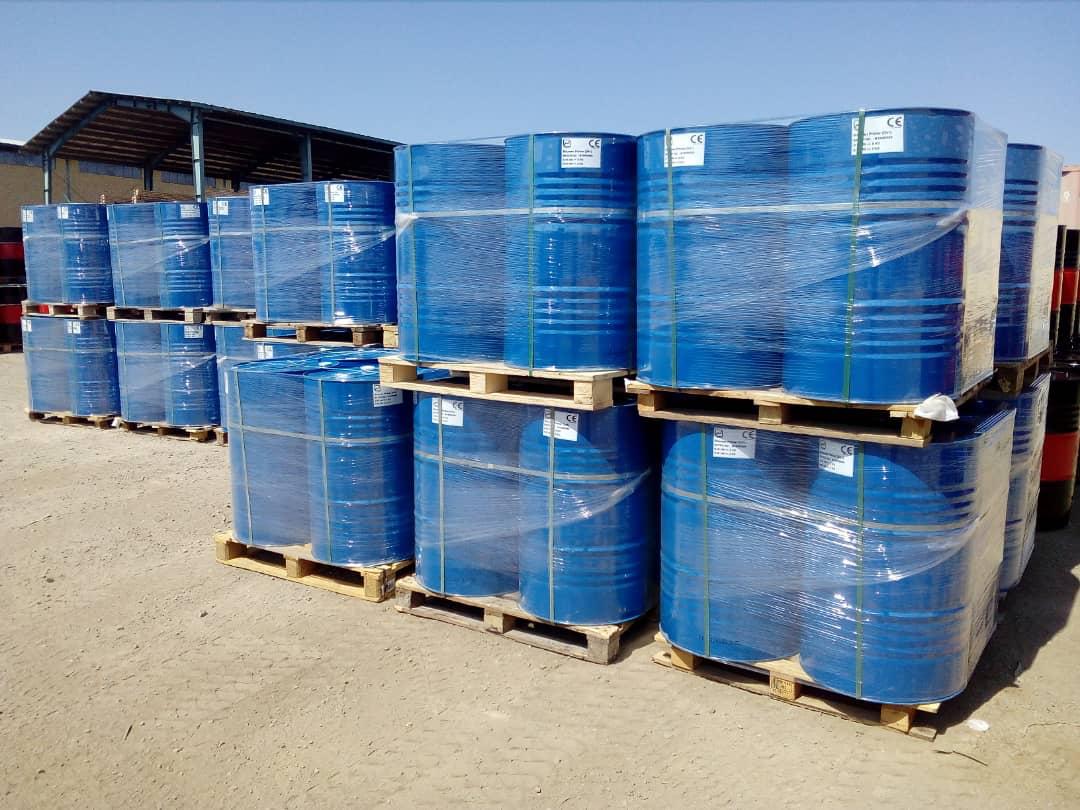

Bitumen emulsions should be kept in closed, corrosion-resistant containers and at a reasonable temperature (approximately 20–50°C). They may need to be agitated to prevent settling, and freezing must be avoided as this will cause the emulsion to break irreversibly.
Pumping and spraying equipment should likewise be cleaned following use in order not to clog or become cross-contaminated with immiscible materials.
Future Trends
As sustainable construction practices become more focused on, bitumen emulsion application will grow. Advances continue in increasing emulsion formulas, such as polymer-modified emulsions and bio-based emulsifiers that increase performance and reduce environmental impact.
Bitumen emulsion’s ability to support cold mix technology, reduce greenhouse gas emissions, and offer cost advantages makes them a critical material in road infrastructure of the future.
